S2C Isolated 4-20mA and Input Module Details

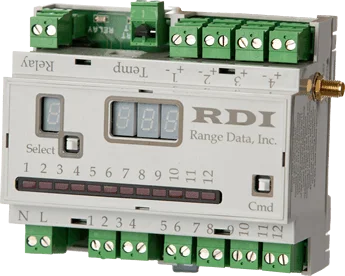

S2C Module

Includes 120Vac 12 Channel Input Module, 4 Channel 4-20mA Module and Cellular Tamper-Proof Antenna

Supervisory Control and Data Acquisition (SCADA) to Cloud using Cellular

Part# S2C Module
Price: $2,000.00
Price: $300.00 yearly Cellular fee>

Wireless Cellular Alarm Monitoring

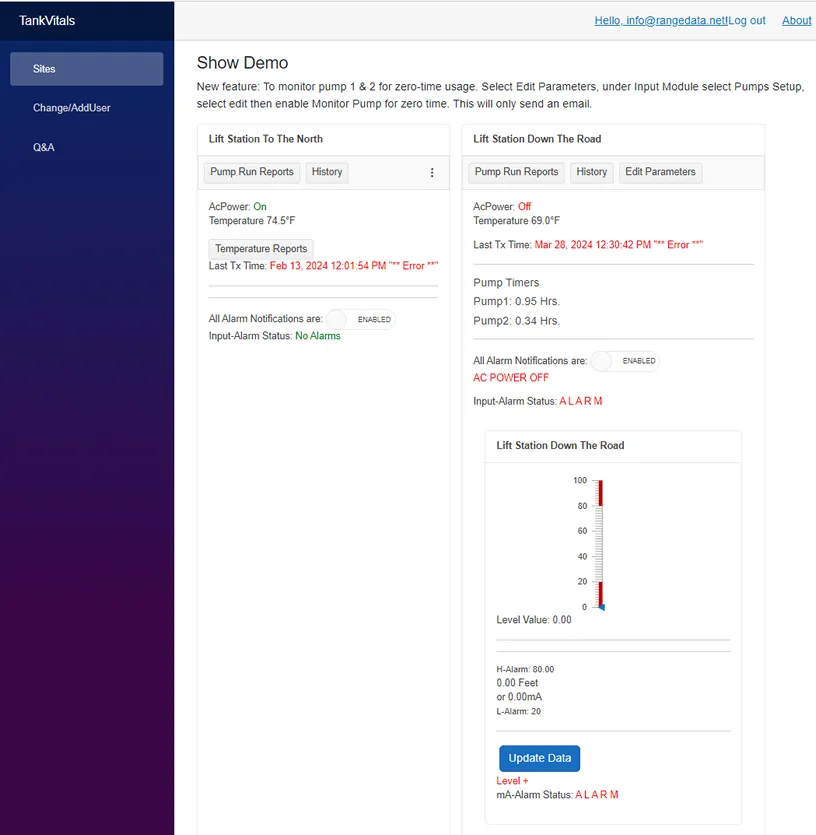

This S2C unit will collect data, check temperatures and monitor alarms. It sends the updated data to the Cloud for viewing from anywhere in the world. Real-time alarm and notifications are sent directly to your phone and/or email address to reduce the risk of severe damage. In the event of a cell tower issue, MySiteVitals S2C automatically connect to another tower while the carrier corrects the issue or in the event of lost signal the Optional Cellular signal falure will activate the relay which can avtive the red light/horn.

Notifications: Voice, SMS Text Message and/or Email
Reports: Data Export Excel Spreadsheets and PDFs

Input 4-20mA 4 Isolated Channels (10 ohms)
Includes VPN (Virtual Private Network)
Real-time alarms
Bluetooth Communication Connection
Notifications sent directly to your phone and/or email
Solid State power backup *no batteries to replace!
Optional Current Sensors selectable 30A, 60A or 120A
Output Custom APIs Alarms to Wonderware (push method SCADA system

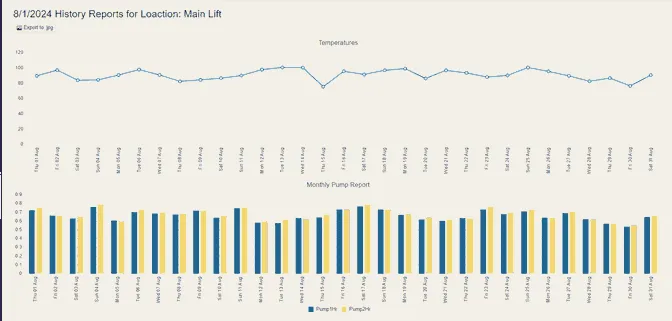

Easily graph daily pump runtimes
3dbi Cellular Tamper-Proof Antenna bolt down
Optional Cellular signal falure will activate relay

Requires 120Vac
Input 4-20mA 4 Channels
Up to 12 Input Ports *each timer removes 1-Input port
Up to 4 Run Timers Selectable
1 Relay to Control
Bluetooth Communication Connection
Temperature Sensor -40°F to 185°F (-40°C to 85°C)

Title	Information
4-20mA Inputs:	4 Channels, Isolated Two-wire Operation, Power is obtained directly from the 4 to 20 mA loop (input impedance 10 ohms), with no need for separate power input.
Power Source:	120Vac
Weight	1.11 LB or 503.49 Grams
Alarm Notication:	Voice, Text, Email each Selectable
Run Timers Inputs:	Run Timer on Inputs 1-4 (Selectable in software)
Alarm Inputs:	12 Inputs for monitoring alarms 120Vac *each run timer converts the alarm input to a Timer Input

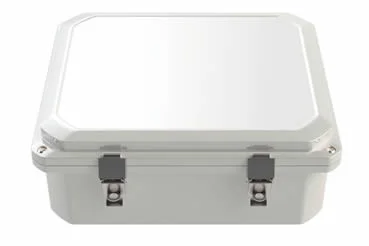

Case:	BOX Plastic, ABS/PC Blend, GRAY, 4.183" L x 3.551" W (106.25mm x 90.20mm)
Cellular Providers:	US: Verizon \| Canada: Rogers
Cellular Antenna Included:	3dBi Cellular DOME SMA Male, Panel Screw Mount, Omni-directional
1 Relay	Control 1 relay 2 Amp 500VA, 440W max swtiching voltage 250Vac, 220Vdc * RDI will code custom interface software reqired for your device
Device Operating Temperature:	-40°F to 185°F (-40°C to 85°C)

Simpler, Faster and Smarter Cellular System for your Location

Test our S2C Cellular 4G wireless tank alarm system? RDI will send a demo unit out to you.

Call Jack at 701-331-4085 to speak to one of our friendly representatives
